100 Ton Hydraulic Laboratory Press

Fully compliant with ISO, DIN, ASTM and GB Standards

Force Capacity: 6 ton - 100 ton (60kN - 1000kN)
Platen size: 496 x 496 mm | 19.53 x 19.53 in
Daylight Layer Options: Single | Double | Triple

Designed with user-friendliness in mind, the 100 ton rubber lab press features the newest lab press technology

   Download Brochure    Request Quote

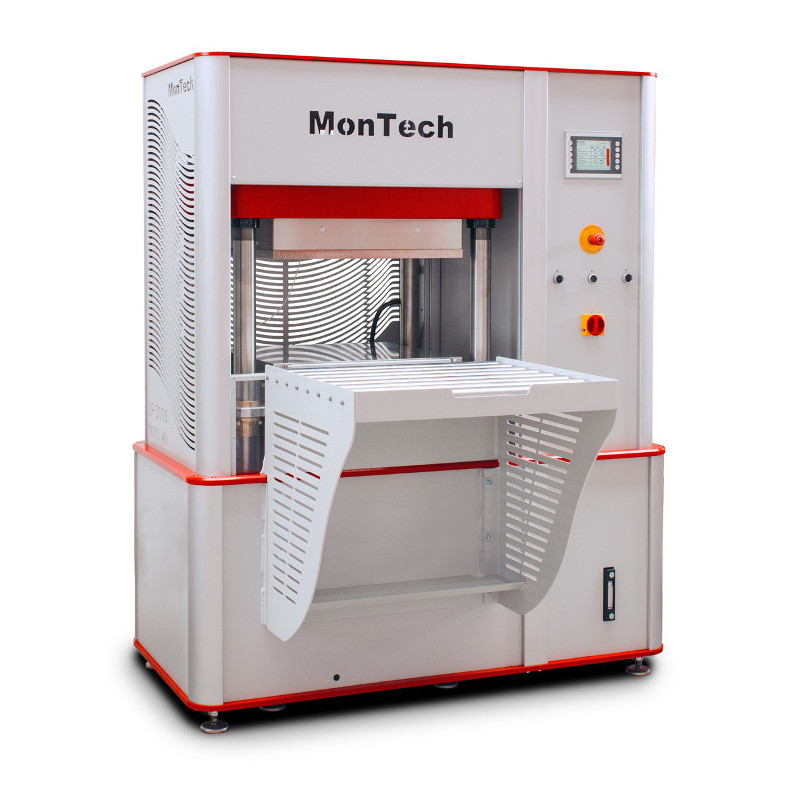

100 Ton Hydraulic Laboratory Press

The LP 3000 100 ton is a high-capacity floor standing hydraulic laboratory press for high performance curing and preparation of rubber samples. Capable of producing up to 100 tons (1000kN) of compression force, this model is designed in accordance with ISO, ASTM, DIN, GB and other international standards for temperature uniformity, parallelism and safety.

Features

  • Complete compliance with ASTM D3182 or ISO 2393
  • Adjustable press force 60kN – 1000kN | 6 ton – 100 ton
  • Digitally controlled force and speed
  • High-speed hydraulics
  • Single daylight access
  • Small footprint for benchtop use
  • Temperature accuracy of ± 0.5°C
  • Digital PID-controlled heating systems
  • Platen parallelism better than 0.1 mm/m.
  • Air cooled heat exchange
  • Programmable operator display
  • Pneumatic front shield
  • Front-side mold access
  • Over a dozen customizable safety features

Platen Options

  • Custom platen sizes and additional heating zones
  • Increased Platen Temperature Ranges
  • Software programmable heating and platen cooling
  • Water cooling platens
  • Additional heating options: Steam or oil
  • Heater timers and cycle counters

Hydraulic Options

  • Low pressure press systems
  • Increased hydraulic cylinder stroke
  • Electronically controlled contact gauge for increased energy efficiency and press noise reduction
  • Custom ejection cylinders for molded part removal

Mechanical Options

  • Press down acting options
  • Custom Tie Rods
  • Automated platen shuttles
  • Multiple daylight Options
  • Sliding or tilting platens
  • Custom Mold mounts
  • Platen ejection systems
  • Work tables

Electrical Options

  • Data interface - MonPress
  • Light Curtains
  • Alarm systems
  • Mold heat temperature controllers
  • Platen Display Lighting
Lab Press Platen

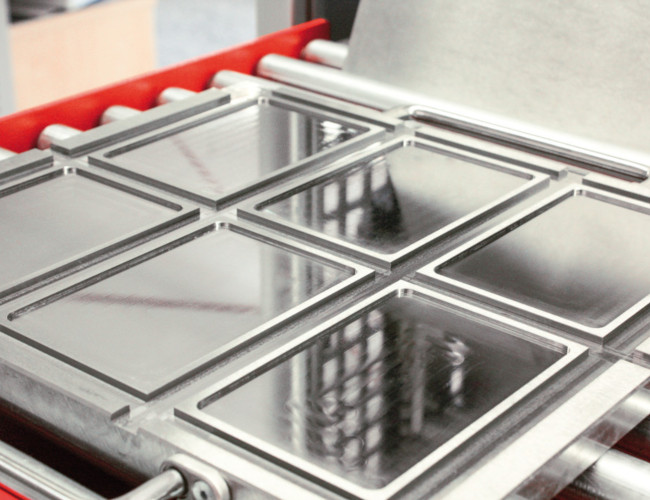

Lab Press Form

Technical Specifications

Capacity

Range: 20 - 1000 kN

Press Platen Size

446 x 446 mm

Pneumatics

4.5 bar / 65 psi

Electrical

480 / 277 Volt, 60 Hz, 3-Phase, 4-wire, with TN-S Earthing

Platen Pressure

5.03 N/mm2

Max. Temperature

250 °C / 480°F

Temperature Accuracy

±1.0°C

Heating Type

Electrical

Capacity per Platen

8.0 kW

Stroke

Opening Speed: 20mm/s
Closing Speed: 30mm/s
Pressing Speed: 1.5 - 3 mm/s
Stroke Travel: 200 mm

Cylinder Stroke

200 mm

Dimensions (H x W x D)

1950mm x 1450mm x 800mm

Weight

1400 kg
