M-VS 3000 Mooney Volume Sample Cutter

Create more precise Mooney Viscosity measurements using the safest and most durable volumetric sample cutter.

   Download Brochure    Request Quote

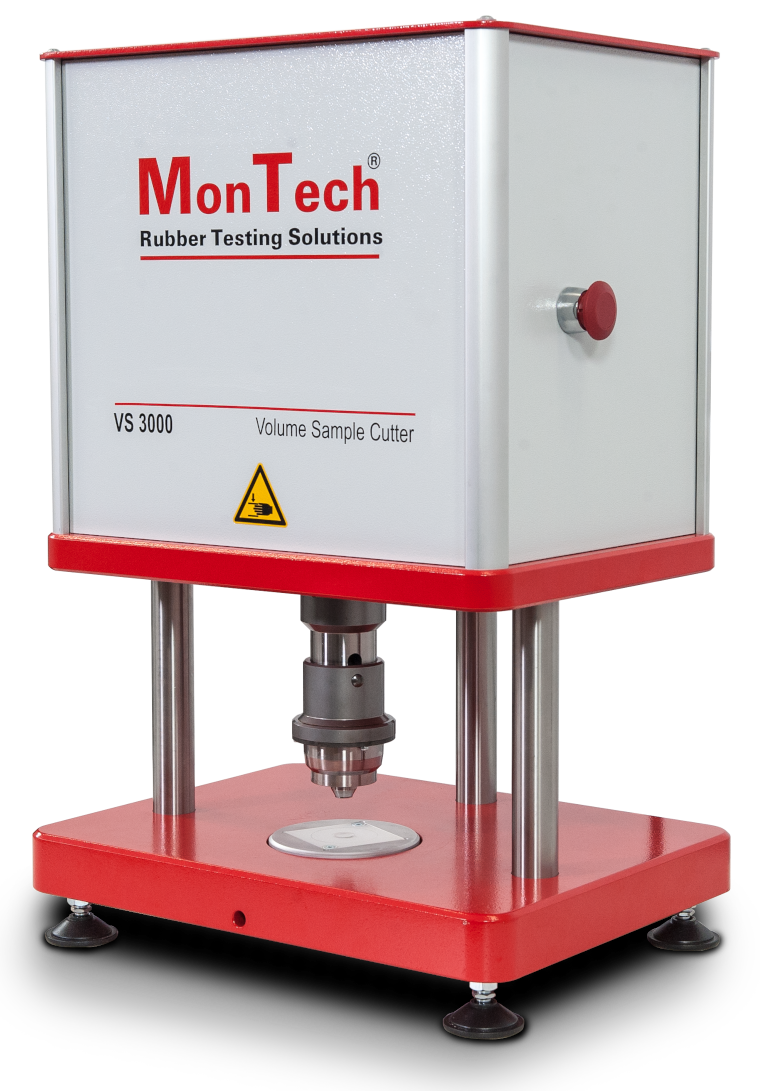

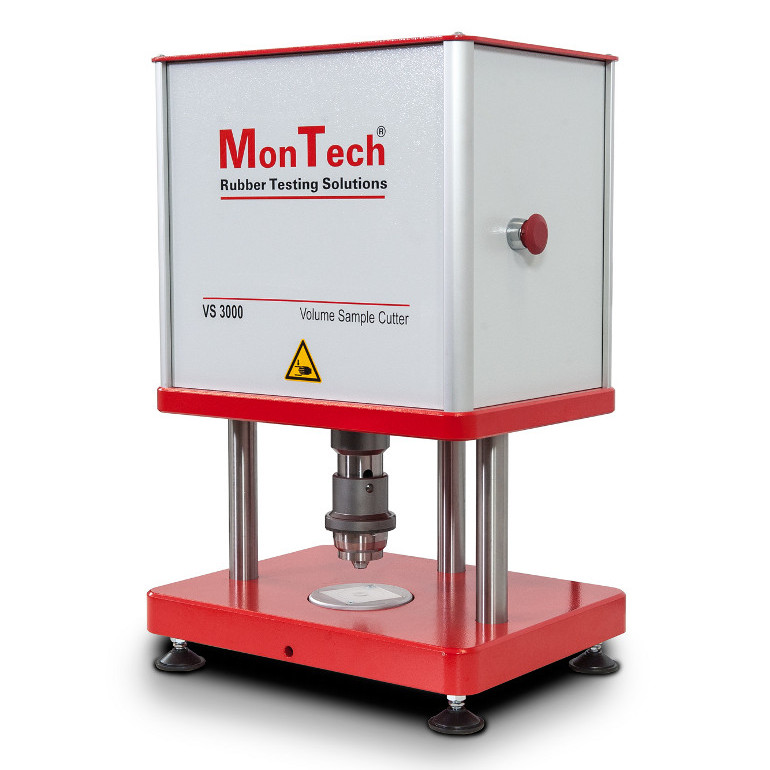

M-VS 3000 Mooney Volume Sample Cutter
Sample preparation attributed directly to test result accuracy and repeatability. The M-VS 3000 Mooney Viscometer Sample Cutter features a double acting cutting system, preparing the center hole, followed by the sample perimeter in a sequential cutting motion. Operated by a two-hand safety button system, users are safe from contact of critical areas. The M-VS 3000 is the optimal cutter for greater accuracy and repeatability of rubber Mooney Viscometer testing.


  • Constant volumetric sampling for Mooney Viscometer testing
  • Automatic cut of center hole
  • 270* cutting area for easy accessibility
  • Two push-button safety operation
  • Quick pneumatic operation

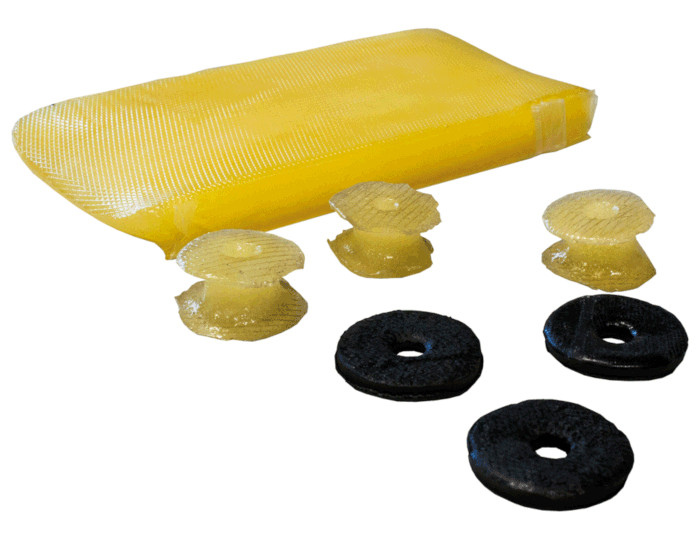

mooney viscometer rubber samples

Technical Specifications

Cutting Diameter

1.8 in (45 mm)

Max. Thickness

0.8 in (20 mm)



Sample Volume

about 15 cm3

Compression Time

1 sec to 15 sec

Dimensions (W x D x H)

24 in x 17 in x 15 in (600 mm x 430 mm x 380 mm)


approx. 50 kg net


min. 5.0 bar
