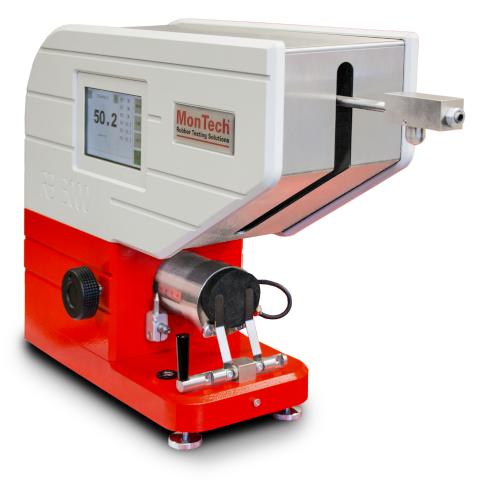

RB 3000 Rubber Rebound Resilience Tester

ISO 4662 | DIN 53512 | ASTM D 1054 | ASTM D 7121 | DIN 13014 (Foam)

Automated rubber rebound resilience tester for accurate determination of resilience properties of rubber compounds

   Download Brochure    Request Quote

RB 3000 Rubber Rebound Resilience Tester

Essential to R&D or quality control, the RB 3000 rubber rebound resilience tester determines the resilience and shock absorption properties of rubber and elastomeric materials. Utilizing a multi-language 7” touch screen display, the RB 3000 effortlessly guides users through each testing sequence. The pendulum mechanism features a 15mm diameter hammer fin connected to an air bearing system. The bearing system is then connected to a high resolution non-contact encoder guaranteeing the highest precision in pendulum angle measurement.

Features & Applications

  • Simplified touchscreen operation
  • Automatic detection of incorrectly placed samples
  • Fully automated test sequence with motorized pendulum release and return
  • Integrated calibration routines allow users to measure, calibrate, and compensate the pendulum friction

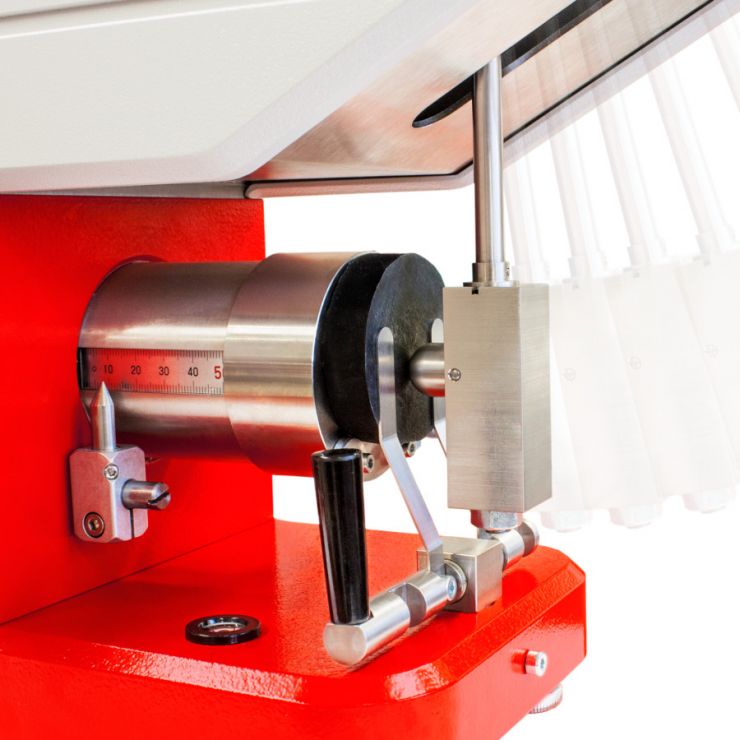

  • Interchangeable hammers, fins and anvil plates for various applications and sample types
  • Three available temperature control systems allow for testing at elevated or even sub-ambient temperatures
  • Easy setup with leveling feet, and an integrated spirit level
  • Heavy duty vibration resistant machine frame
  • Test sequences include up to three pre-test or full test hits
  • Results displayed on the 7" touchscreen and / or delivered to a database

Technical Specifications

Measurement Method

Pendulum rebound resilience measurement (Schob type)
Test Modes

Single, Median of 3 tests (with 3 conditioning hits)
Standards

DIN 53512 | ISO 4662 | ASTM D 1054 | ASTM D 7121 | DIN 13014 (Foam)
Operation

Fully automated with automatic pendulum lift and release
User Interface

Integrated 7” color - Touchscreen
Sample Dimensions

Cured rubber buttons or sheets with 0 to 20mm thickness
28 to 65mm in diameter or 50 x 50mm in size
Anvil Distance

0 to 60mm (steplessly adjustable)
Release Angle

90°
Resolution / Accuracy

0.001° arc / 0.1% Rebound Resilience
Hammer fin

hemispherical, 15mm in diameter
Impact to Impact Velocity

1.98m/s
Impact Energy

426.5 kJ/m3
Pendulum Capacity

0.5 Joule
Pendulum Length

200mm
Pendulum Mass

255g
Output Languages

English, French, German, Spanish, Russian (others on request)
Output Interfaces

Serial (RS232) and USB 2.0
Data Acquisition

MonLink software (optional) for test configuration management, data acquisition and statistical evaluation
Electrical

100 - 260 VAC +/- 10%, 50/60 Hz +/- 5 Hz, 2 amp single phase
Weight

Approximately 50 kG
Dimensions (H x W x D)

370 mm x 580 mm x 180 mm
Options
  • Reference rubber samples
  • Specimen curing moulds in various configurations
  • Pendulum for foam tests: Hammer with 0.196J / dia. = 30mm
  • Pendulum for foam tests: Ball with 0.2J / Cylinder dia. = 40mm
  • Heating system, ambient to +100°C
  • Heating / cooling system, -20°C to +100°C
  • Advanced heating / cooling system, -40°C to +100°C
  • Vacuum sample holder system
  • Multi sample automation
