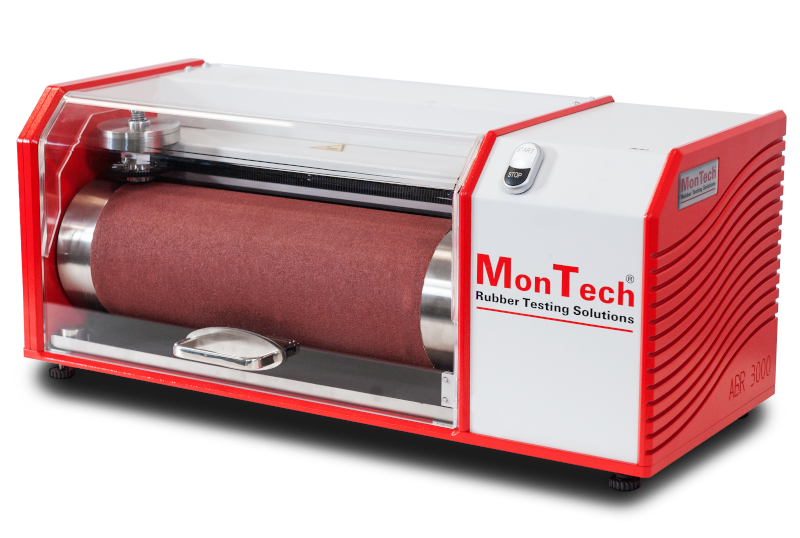

ABR 3000 Rubber Abrasion Tester

The MonTech ABR 3000 Rubber Abrasion Tester quickly determines abrasion loss and the abrasion resistance index for elastomeric materials.

   Download Brochure    Request Quote

ABR 3000 Rubber Abrasion Tester

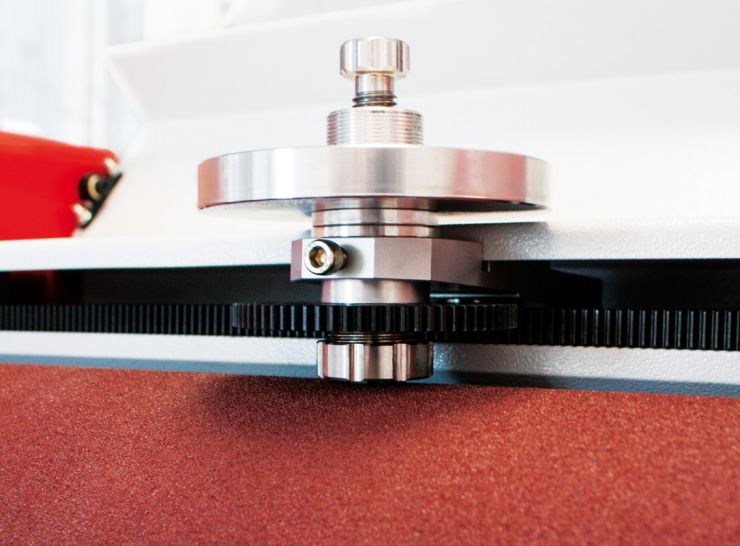

The ABR 3000 abrasion tester is the simplest and safest way to determine the abrasion resistance of rubber, or frictional loss of any elastomer over a predefined distance. The rubber abrasion test is one of the most important and widely used tests for simulating a rubber product’s abrasive exposure in its end environment. Fixed into a quick clamp sample holder, the test specimen is precisely guided across the rotational drum. Upon test completion, sample weight is taken to compare the loss factor.

Features

  • Stiff Aluminum machine frame
  • Pre-set sample travel distance
  • Brushless drive system
  • Standard load weight of 2.5 N with additional load weights of 2.5 N and 5.0 N.
  • Optional analytical balance
  • Optional heated drum
  • Optional drum cleaning unit
  • Optional circular sample cutter
abrasion tester supplies

Technical Specifications

Standards

DIN 53516
ISO 4649:2002 (E)
AS1683.21
ASTM D 5963

Contact Pressure

N   2.5     5.0     7.5     10.0
N   12.5   15.0   17.5   20.0

Drum Diameter

5.9 in (150 mm)

Drum Length

18.1 in (460 mm)

Drum Speed

40 min-1

Peripheral speed with abrasion sheet

0.32 m/s

Abrasion Sheet dimensions L/W

472.5 mm (+2)  x 400 mm

Film tape W/D

1.97 in x 0.008 in (50 mm x 0.2 mm)

Abrasion distance of sample

131.24 ft (6.56 ft) | 40 m (20 m)

Corresponds to roller rotations

84 (42)

Angle of inclination of axle center of the sample to vertical position of the drum

Granulation of abrasion sheet

60 mesh

Sample Diameter

0.63 in (16 mm)

Sample Thickness

0.24 - 0.59 in (6 - 15 mm)

Maximum gripping length of sample

0.63 in (16 mm)

Lateral feed of sample per roller rotation

0.17 in (4.2 mm)

Number of revolutions of sample holder for rotating sample

0.9 min-1

Dimensions  (H x W x D)

15 in x 30 in x 17 in (370 mm x 760 mm x 430 mm)

Weight

about 50 kg net

Electrical

90-250 V, 1 Amp, 47-63 Hz, Single phase

Optional Items

- Additional load weight 10 N
- Analytical balance, 1 mg or 0.1 mg
- Heated drum
- Wet abrasion testing (spray / basin)
- Drum cleaning unit
- Circular sample cutter, diameter 16 mm
- Standardized test elastomer specimen according to ISO 4649 and ASTM D 5963
- Set of emery papers / abrasion sheets
