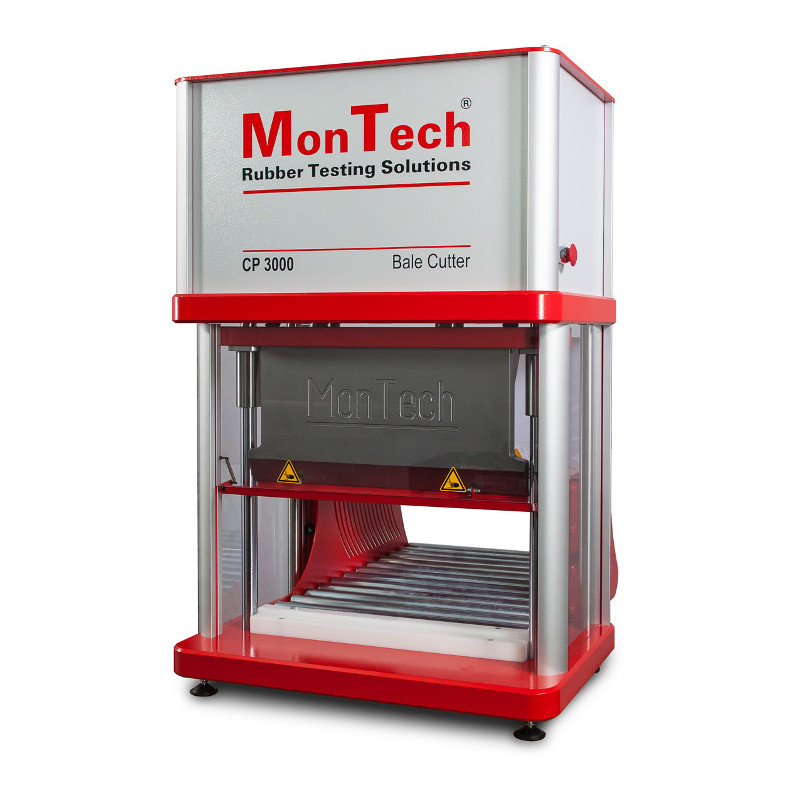

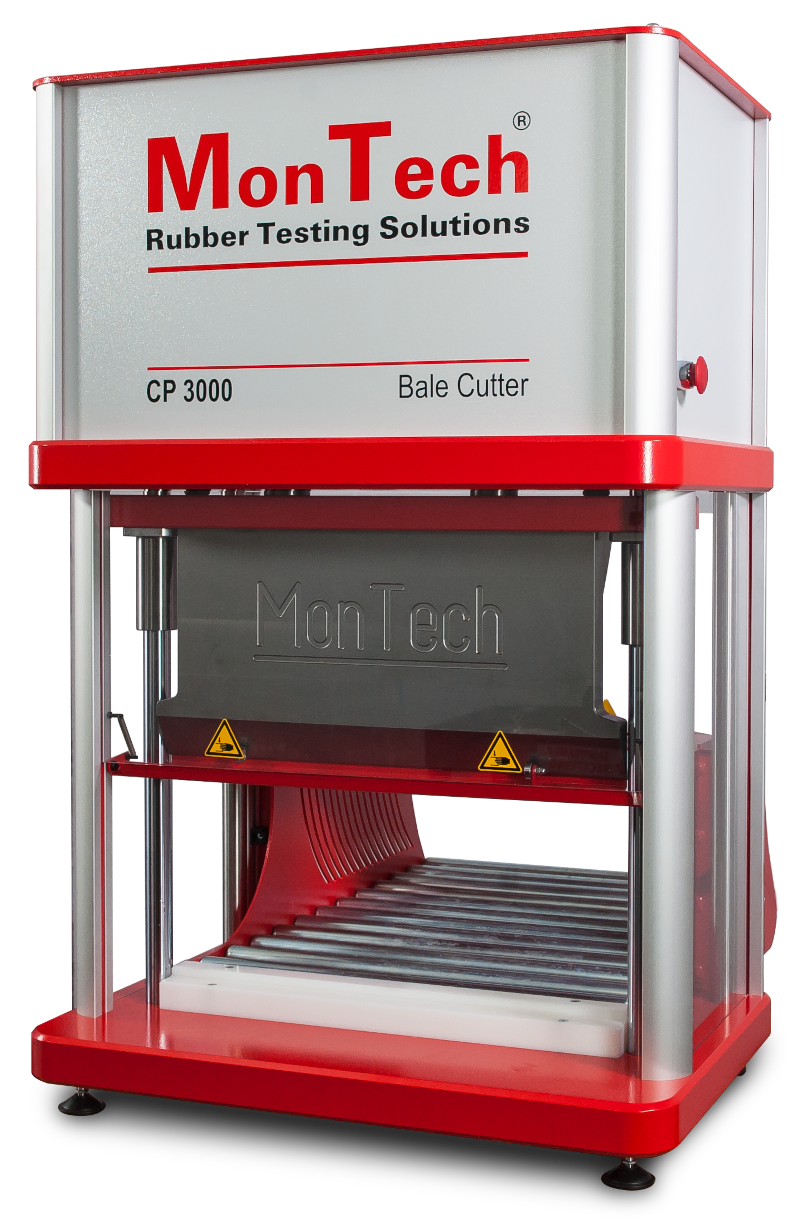

CP 3000 Large Frame Rubber and Polymer Bale Cutter

Usable on the production floor or in the rubber laboratory, the pneumatic polymer bale cutter slices standard bale sizes with any hardness range.

   Download Brochure    Request Quote

CP 3000 Large Frame Rubber and Polymer Bale Cutter

The CP 3000 laboratory Bale cutter is the most convenient solution to cut and slice polymer bales, blocks, and rubber sheets. Fitted with a two-hand safety operation system, an optional feeding tunnel and knife cover, the unit provides the most operator convenience while fitting the highest safety standards.

Features

  • Two hand safety operation
  • Tabletop model
  • Hardened and precision ground cutting blade
  • Precision-ground ball bearing blade guides
  • Quiet pneumatic operation
  • Transparent safety shields
  • Optional automatic knife cover
  • Optional feeding tunnel

Technical Specifications

Operation

Up to 12 cuts / minute, cutting and lifting speed adjustable

Bale Width /
Cutting Width

max. 20.5 in (520 mm)

Bale Height /
Cutting Height

max. 9.5 in (240 mm)

Cutting Pressure
(adjustable)

Min: 0.6 tons @ 2.0 bar
Max: 4.6 tons @ 10.0 bar

Cutting Knive

Hardened and precision ground

Cutting Strip

Teflon, exchangeable

Material Supply

Roller conveyor, total length 750 mm

Safety Equipment

Pneumatic safety 2-hand operation (anti-tiedown), transparent safety shields on all sides

Required Supplies

Compressed air with min. 2 bars (5 bars recommended),
No electrical connection required!

Dimensions (H x W x D)

42.7 in x 35.4 in x 27.6 in (1085 mm x 900 mm x 700 mm)

Weight

approx. 225 kg net
