Hydraulic Laboratory Presses

hydraulic rubber silicone lab presses

Create the most uniform test specimens using MonTech's superior rubber and silicone lab-scale compression press designs.

LP 3000 - 200kN

20 Ton

Benchtop hydraulic laboratory press

  • Force Capacity Range
    1.5 - 20 Ton
    (12 - 200kN)
  • Platen Size
    196 x 196 mm
    (7.71 x 7.71 in)
  • Platen Pressure
    5.21 N/mm2
  • Capacity per Platen
    2.8 kW
  • Daylight Layers
    Single
Learn More
LP 3000 - 400kN

40 Ton

Compact floor standing hydraulic laboratory press

  • Force Capacity Range
    2.4 - 40 Ton
    (24 - 400kN)
  • Platen Size
    296 x 296 mm
    (11.65 x 11.65 in)
  • Platen Pressure
    4.57 N/mm2
  • Capacity per Platen
    4.0 kW
  • Daylight Layers
    Single
    Double

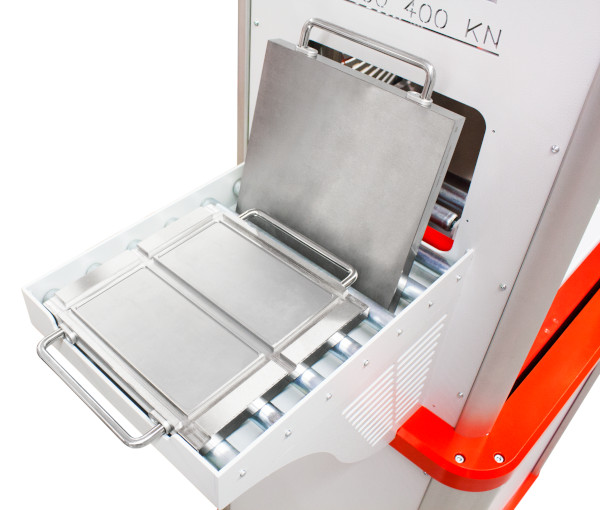

  • Mould Cart (movable)
  • Mould Rack (stationary)
Learn More
LP 3000 - 600kN

60 Ton

Floor standing hydraulic laboratory press

  • Force Capacity Range
    4 - 60 Ton
    (40 - 600kN)
  • Platen Size
    446 x 446 mm
    (17.56 x 17.56 in)
  • Platen Pressure
    3.02 N/mm2
  • Capacity per Platen
    6.0 kW
  • Daylight Layers
    Single
    Double
    Triple
  • LED interior worklight for press platens
  • Mould Cart (movable)
  • Mould Rack (stationary)
Learn More
LP 3000 - 1000kN

100 Ton

High volume hydraulic laboratory press

  • Force Capacity Range
    6 - 100 Ton
    (60 - 1000kN)
  • Platen Size
    496 x 496 mm
    (19.53 x 19.53 in)
  • Platen Pressure
    4.07 N/mm2
  • Capacity per Platen
    6.0 kW
  • Daylight Layers
    Single
    Double
    Triple
  • LED interior worklight for press platens
  • Mould Cart (movable)
  • Mould Rack (stationary)
Learn More
LP 3000 - 1500kN

150 Ton

High-capacity heavy-duty hydraulic laboratory press

  • Force Capacity Range
    10 - 150 Ton
    (100 - 1500kN)
  • Platen Size
    596mm x 596 mm
    (23.5 x 23.5 in)
  • Platen Pressure
    4.22 N/mm2
  • Capacity per Platen
    10.0 kW
  • Daylight Layers
    Single
    Double
    Triple
  • LED interior worklight for press platens
  • Mould Cart (movable)
  • Mould Rack (stationary)
Learn More

Using the newest innovations in rubber laboratory press engineering , the LP series features unmatched temperature uniformity and parallelism while providing the largest selection of customizable options.


Standard Features

MonTech lab presses feature the latest drive and control technology.
All lab presses include:

  • Rigid 4-column press frames
  • Electric heating
  • Stainless steel platens
  • Full-color touch screen interfaces
  • Software proximity switches
  • Digital PID temperature controllers

Options & Accessories

All lab presses include the following options and accessories:

  • 2-hand safety control
  • Pneumatic front shield
  • Temperature accuracy ±0.5°C
  • PLC control
  • Data acquisition system
  • Enlarged ram strokes

Curing Molds

MonTech offers a comprehensive range of durable curing molds according to any ISO, DIN, ASTM and GB standard. Manufactured from hardened and polished stainless steel, molds feature single or multiple cavities.

The precise temperature control and homogenous temperature distribution ensure perfect samples for hardness, tensile, density, filler dispersion and more.

Lab Press Mold
Rubber Curing Mold

Request a Quote
