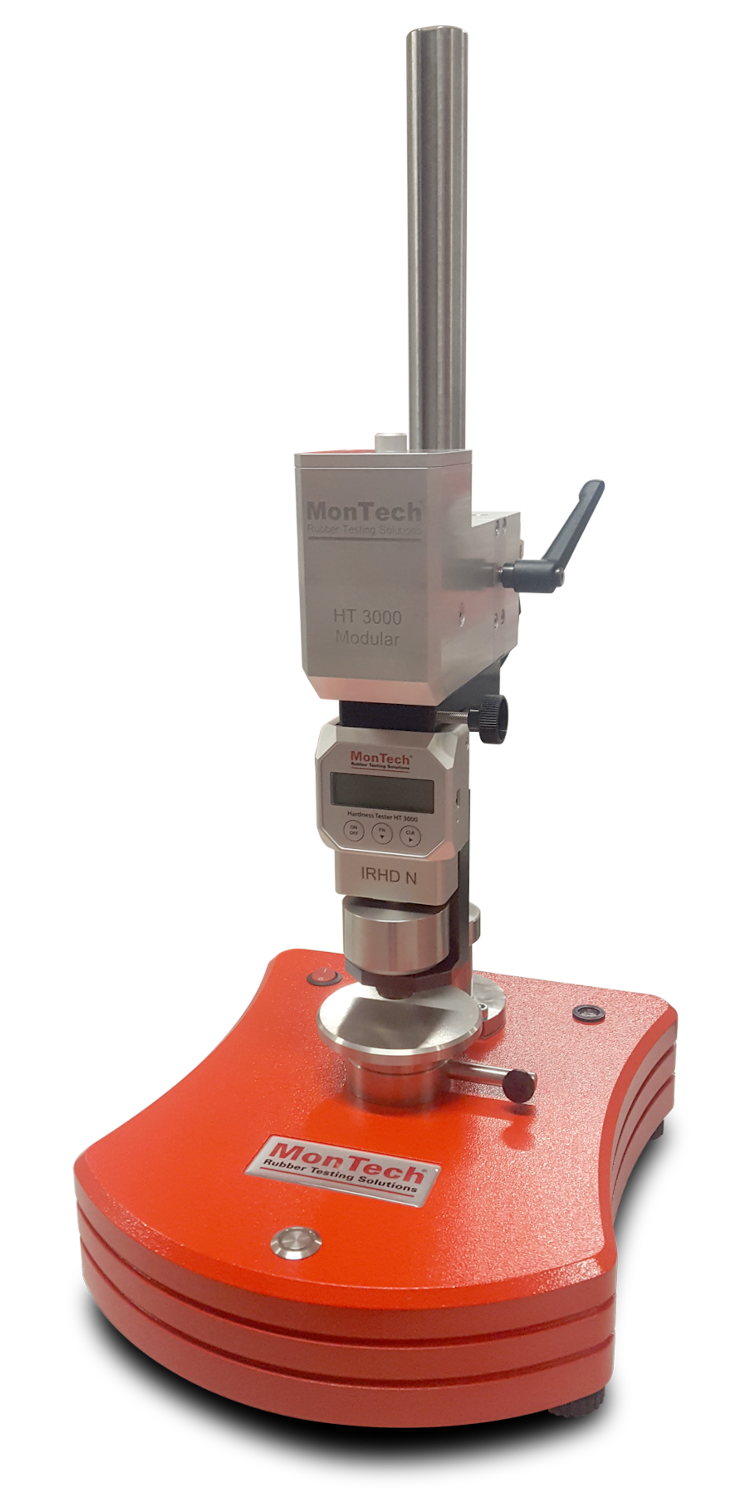

HT 3000 IRHD Rubber Durometer

The newest and most accurate rubber hardness IRHD durometers for rubber, molded parts, sponge, plastics and other viscoelastic materials.

Download Brochure    Request Quote

HT 3000 IRHD Rubber Durometer

MonTech’s International Rubber Hardness Degrees (IRHD) durometers are the most advanced IRHD instruments focusing on rubber and other viscoelastic materials. IRHD test methods available include: N, M, H, L, VLRH. IRHD testing is a non-destructive test, focusing on molded parts or otherwise, conducted within 35 seconds and produces a number between 1-100 IRHD. The unit features connectivity to any database using MonLink software.

Features

  • IRHD: M, H, N, L, VLRH
  • Automated test sequences
  • Test stand with adjustable height
  • Integrated tolerance limits or pass/fail settings
  • Integrated load weights
  • Rubber reference blocks
  • Includes Monlink for connectivity to any database

Technical Specifications

Standards

ISO 48
ASTM D1415

Power Supply

Included in base of test stand

Protection Class

IP 50

Reading Accuracy

± 0.5 IRHD / SHORE

Resolution

0.1 IRHD / SHORE

IRHD Test Methods Available

Test Type M, N

Data Output

RS 232, USB

Dimensions

Width: 170 mm
Height: 460 mm
Depth: 220 mm

Weight

5.85 kg (net)

Test Standards

ISO 48, ASTM D 1415
