40 Ton Compact Hydraulic Laboratory Press
Force Capacity: 2.4 ton - 40 ton (24kN - 400 kN)
Platen size: 296 x 296 mm | 11.65 x 11.65 in
Daylight Layer Options: Double
Compact floor-standing hydraulic rubber curing press with 40 tons (400kN) of load force, the most precise temperature uniformity, and platen parallelism.
Features
- Complete compliance with ASTM D3182 or ISO 2393
- Adjustable press force 24kN – 400kN | 2.4 ton – 40 ton
- Digitally controlled force and speed
- High-speed hydraulics
- Single daylight access
- Small footprint for benchtop use
- Temperature accuracy of ± 0.5°C
- Digital PID-controlled heating systems
- Platen parallelism better than 0.1 mm/m.
- Air cooled heat exchange
- Programmable operator display
- Pneumatic front shield
- Front-side mold access
- Over a dozen customizable safety features

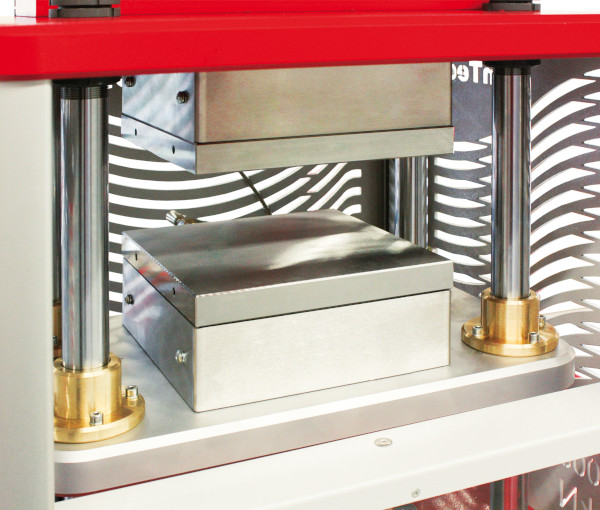

Platen Options
- Custom platen sizes and additional heating zones
- Increased Platen Temperature Ranges
- Software programmable heating and platen cooling
- Water cooling platens
- Additional heating options: Steam or oil
- Heater timers and cycle counters
Hydraulic Options
- Low pressure press systems
- Increased hydraulic cylinder stroke
- Electronically controlled contact gauge for increased energy efficiency and press noise reduction
- Custom ejection cylinders for molded part removal
Mechanical Options
- Press down acting options
- Custom Tie Rods
- Automated platen shuttles
- Multiple daylight Options
- Sliding or tilting platens
- Custom Mold mounts
- Platen ejection systems
- Work tables
Electrical Options
- Data interface - MonPress
- Light Curtains
- Alarm systems
- Mold heat temperature controllers
- Platen Display Lighting
Technical Specifications
Standards | ISO 2393 |
Capacity Range | 50 - 400 kN (2.4 - 40 ton) |
Press Platen Size | 11.65 x 11.65 in (296 x 296 mm) |
Pneumatics | 4.5 bar / 65 psi |
Electrical | 480 / 277 Volt, 60 Hz, 3-Phase, 4-wire, with TN-S Earthing |
Platen Pressure | 4.57 N/mm2 |
Max. Temperature | 250 °C / 480°F |
Temperature Accuracy | ±1.0°C |
Heating Type | Electrical |
Capacity per Platen | 4.0 kW |
Stroke | Opening Speed: 20mm/s |
Cylinder Stroke | 300 mm |
Dimensions (H x W x D) | 66.73 in x 31.50 in x 23.23 in (1695 mm x 800 mm x 590 mm) |
Weight | 800 kg |
