DisperCut 3000 Rubber Dispersion Sample Cutter

Repeatedly prepare optically flat sample cross-sections for the most accurate rubber dispersion testing results.

Download Brochure  Request Quote

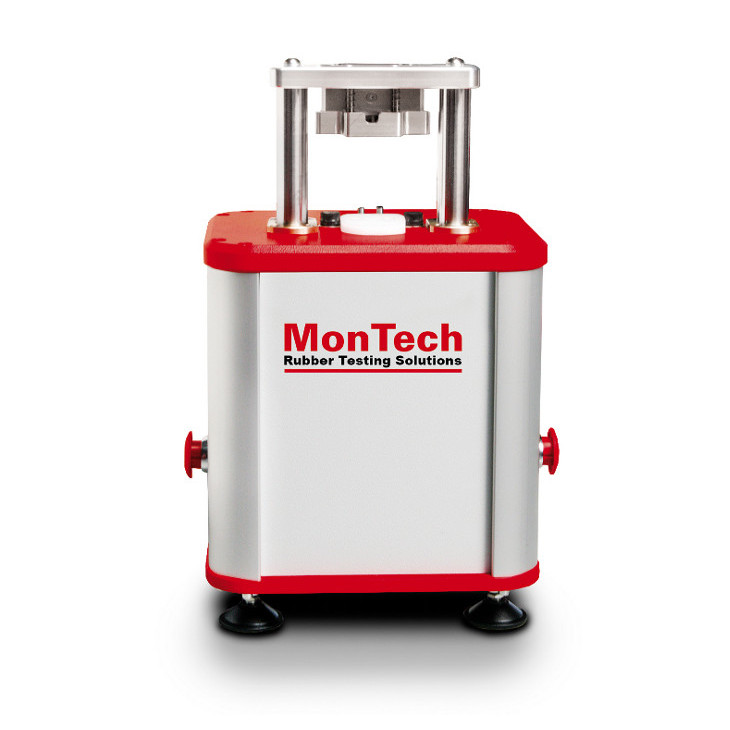

DisperCut 3000 Rubber Dispersion Sample Cutter

The DisperCut 3000 dispersion tester sample peparation instrument is the most repeatable method for preparing fine cuts on dispersion testing samples. Samples are stretched while cutting to avoid smearing, contamination, or unevenness in the usable cross section. In less than one second, samples are prepared. For highest operator safety, the unit is fit with two hand safety operation with anti-tiedown as well as automatic knife cover.


  • Ultra-sharp heavy duty single edge blades
  • High-speed close and cut system
  • Integrated endstops
  • Precision-ground blade guides
  • Adjustable pre-stretching
  • Two hand safety operation and covered blade

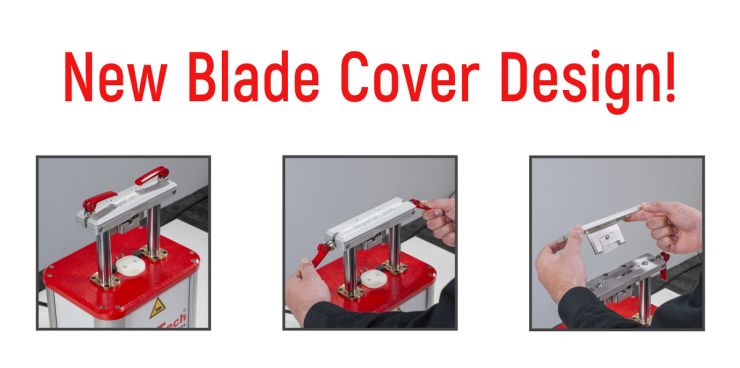

DisperCut Blade Cover Design

Technical Specifications


ISO 11345 : 2006
ASTM D 7723

Cutting Blades

Ultra-sharp heavy duty single edge blades, easily replaceable

Sample Dimensions

Max. Ø 45 mm or 40 x 40 mm


Adjustable by different cutting plates from 50 to 10%


2-hand safety control with anti-tiedown

Cutting Speed

Up to 20 cuts per minute

Dimensions (H x W x D)

16.93 in x 11.61 in x 8.07 in (430 mm x 295 mm x 205 mm)


12.0 kg (net)


min. 5 Bar
