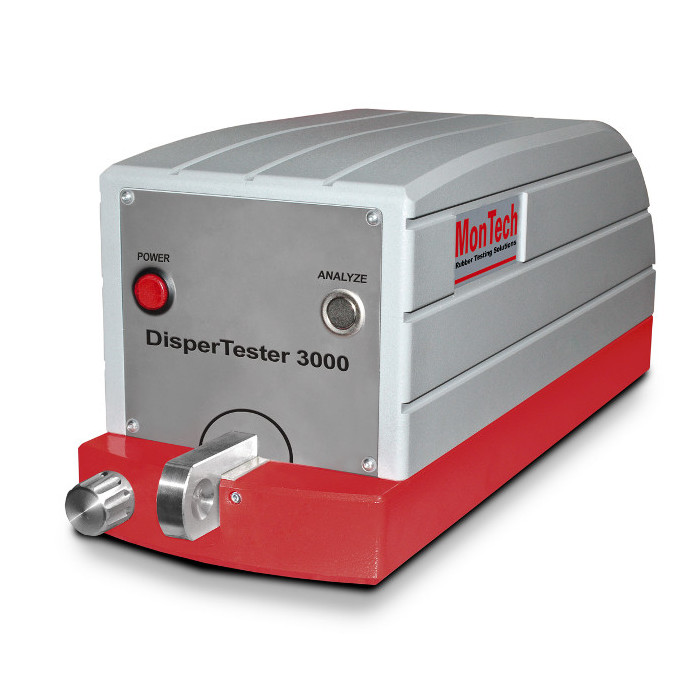

DisperTester 3000 Manual Rubber Dispersion Tester

Manually adjustable carbon black dispersion tester for measurement of filler dispersion in rubber compounds

   Download Brochure    Request Quote

DisperTester 3000 Manual Rubber Dispersion Tester

The DisperTester 3000 is equipped with cutting edge digital image processing to determine accurate carbon black dispersion ratings, filler distribution and agglomerate sizes. Camera system features include manually adjustable brightness, contrast, exposure and focus.

Features

  • Telecentric Carl Zeiss optical system
  • Manual image focus
  • Manual specimen scanning
  • Adjustable brightness, contrast and exposure
  • Gray scale camera
  • LED or halogen lighting structure
  • Built-in compound reference scales
  • MonDispersion software included for automated agglomerate measurement and reporting
  • Available magnifications: 30x – 100x – 1000x

Technical Specifications

Standards

ISO 11345
ASTM D 7723

Magnification

DisperTester 3000 - 1000x = 1000 times magnification
DisperTester 3000 - 100x = 100 times magnification
DisperTester 3000 - 30x = 30 times magnification

Aperture Size

DisperTester 3000 - 1000x = 4 mm x 3.5 mm (0.16" x 0.14")
DisperTester 3000 - 100x = 4 mm x 3.5 mm (0.16" x 0.14")
DisperTester 3000 - 30x = 9 mm x 5 mm (0.35” x 0.20”)

Focus

Manual

Image Resolution

5 Megapixel with Carl Zeiss telecentric optics

Data Interface

USB 2.0

Data Format

PDF, JPEG, ASCII

Sample Preparation

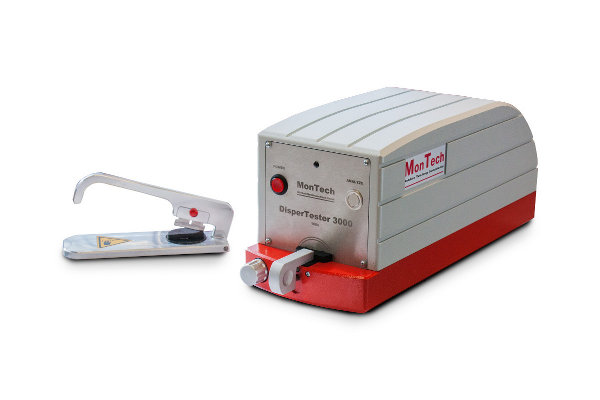

Manual sample cutter with 100 spare blades included

Dimensions (H x W x D)

7.48 in x 6.30 in x 18.11 in (190 mm x 160 mm x 460 mm)

Weight

17.5 kg net

Electrical

80 - 250 VAC, 47 – 63 Hz, 1 Amps

Optional

DisperCool 3000
DisperCut 3000

Properties of the cured compound are directly affected by filler dispersion including:

  • Tensile strength
  • Tear strength
  • Fatigue resistance
  • Abrasion resistance
